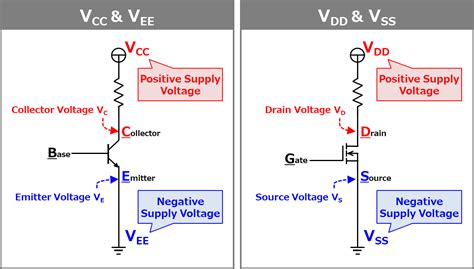

vcc electrical meaning,The meanings and differences of VCC, VEE, VDD, and VSSused in the supply voltage are shown below. 1. VCC 1.1. VCC is used as the positive supply voltagefor circuits using a bipolar transistor (BJT). 1.2. The "C" in "VCC" stands for Collector. 1.3. It is widely believed that the reason for . Tingnan ang higit pa
VCC is used as the positive supply voltagefor circuits using a bipolar transistor (BJT). The positive supply voltage on the collector side of the NPN bipolar transistor is "VCC". . Tingnan ang higit pa
VDD is used as the positive supply voltagefor circuits that use a field-effect transistor (FET). The positive supply voltage on . Tingnan ang higit pa
VSS is used as the negative supply voltagefor circuits that use a field-effect transistor (FET). The negative supply voltage on . Tingnan ang higit pa
VEE is used as a negative supply voltagefor circuits that use a bipolar transistor (BJT). The negative supply voltage on the emitter side of the NPN bipolar transistor is "VEE". The emitter terminal of an NPN bipolar transistor is often . Tingnan ang higit paVcc and Vee refer to circuits built on bipolar transistors, hence the letters C (collector, collector) and E (emitter, emitter) . circuits with Vdd and Vss are built on field-effect transistors, hence D (drain, drain) and .Vcc What is Vcc? Definition. The supply voltage for a circuit is often given as V plus a double-letter suffix. The double letter is usually related to the lead of the transistors that .
VCC, short for “Voltage at the Common Collector,” refers to the positive voltage source in a circuit. It is also known as the supply voltage or the positive source voltage. It is . If the same letter is repeated, that means a power supply voltage: Vcc is the (positive) power-supply voltage associated with the collector, and Vee is the (negative) .
VCC, also known as Voltage Common Collector, serves a critical function in electronics by providing the necessary power supply voltage to operate various . The terms VCC, VEE, VDD, and VSS are used in relation to power supply voltages. Here are their meanings and differences. VCC • VCC is used as the positive .V CC of a bipolar junction transistor is the DC voltage that is supplied to the collector of the transistor. V CC is a very important voltage when biasing the transistor because it determines how much the AC signal .vcc electrical meaning what does vcc mean arduinoVcc: positive power supply for many IC's, traditionally this referred to BJT based ICs, the 'cc' referring to the collectors of the integrated transistors. Often this was matched with a negative supply, Vee ('ee' .
VDD is the voltage connection for the drain terminal of a MOSFET. VCC applies to the collector terminal of a BJT. When you’re selecting components for a project, ensure .what does vcc mean arduino VBB, VCC, VDD, VEE, VSS, GND. Almost all integrated circuits (ICs) have at least two pins that connect to the power rails of the circuit in which they are installed. These are known as the power-supply pins. However, the labeling of the pins varies by IC family and manufacturer. , but internal design and historical traditions have led to a .
Vf is used to indicate the forward voltage drop of the diode. Vdd : positive power supply for many IC's, traditionally this referred to FET (NMOS, PMOS, CMOS) based ICs, the 'dd' referring to the drains of the .
The strict meaning of these has been lost among a growing number of people, and hence you will often see Vcc used as the positive supply in CMOS circuits and see Vdd in BJT circuits. In many circuits, Vss/Vee is the same as the ground node, in which case it may or may not ever be noted as being Vss or Vee.
VCC. ( electronics, also VCC) Common Collector Voltage; the positive supply voltage for an integrated circuit containing bipolar junction transistors. ( television) Initialism of Video Compact Cassette.
VCC, short for Voltage Common Collector, is a term commonly used in electronics to refer to the power supply voltage in a circuit. It represents the positive supply voltage that is required to operate and power the various components of an electronic device or system. VCC can also be referred to as VDD, which stands for Voltage Drain .
VCC: C=circuit means circuit, that is, the voltage connected to the circuit. . be sure to read the electrical parameters clearly. . Vcc comes from the collector power supply voltage, Collector .
VCC: C=circuit means circuit, that is, the voltage connected to the circuit. . be sure to read the electrical parameters clearly. . Vcc comes from the collector power supply voltage, Collector .VCC of a bipolar junction transistor is the DC voltage that is supplied to the collector of the transistor.. VCC is a very important voltage when biasing the transistor because it determines how much the AC signal can be amplified to in the transistor. If VCC is too low, the transistor will not have enough power and the amplified AC signal will come out clipped.vcc electrical meaningVoltage common collector (V CC ), an IC power-supply pin and collector supply line voltage in an NPN circuit. Virtual credit card, a virtual credit card number typically used for online purchases. Voice call continuity, a specification for mobile phone service. Video Compact Cassette, an early name for Philips' Video 2000 videocassette format.
